Pedestrian pallet truck 1.4 - 2.0t

122 mm
1400 - 2000 kg

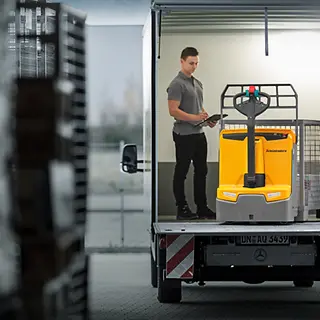

Ideal for loading and unloading HGV and as truck-mounted forklift
Compact and manoeuvrable due its short chassis length
Outstanding driving stability for daily pallet transport
Powerful and maintenance free 3-phase AC motors
Built-in charger for quick and easy battery charging (optional)

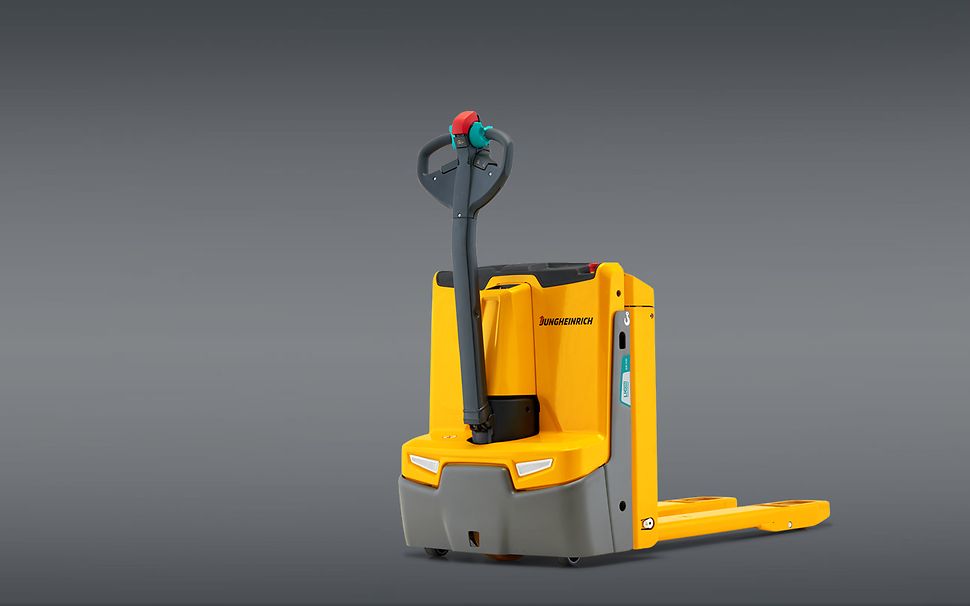

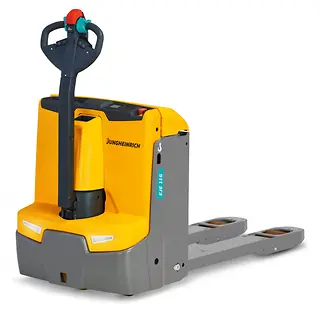

EJE 114/ 116/ 118/ 120

The manoeuvrable and economic electric pedestrian controlled trucks from the EJE 1 series are ideal for loading and unloading HGVs as well as the daily transport of pallets over short distances. Due to their compact size and their light weight they are the perfect truck-mounted forklift. The support wheels, installed on each side, increase the stability during manoeuvring. A safe distance between truck and operator is ensured by the low mounted long tiller. This is particularly beneficial when cornering. Our 3-phase AC motors offer high efficiency levels, thus the EJE 1 are available for long operations with constant high performance. With its quick and easy lateral battery change, optionally available from EJE 116, this truck is an efficient companion, even during multi-shift operations. Additionally, the extremely long living lead-acid batteries sustainably reduce operating costs. This new generation of our Jungheinrich classic is thus the premium product in its segment.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Benefits

Connected Trucks

Use the data from your trucks to save time, energy and money and increase efficiency. Our Telematics box (ex factory) provides you with a free fleet management starter package that can be flexibly expanded with various hardware and software components.

Features

High-performance 3-phase AC technology

High efficiency levels with excellent energy management.
Fast acceleration.
Quick change of direction without delay.
2-year warranty on driving motor.

Professional battery management

Energy saving 3-phase AC technology in combination with battery capacities of up to 375 Ah allow for particularly long operating times.
Multi-shift operation with the optional lateral battery exchange.
Built-in charger (optional) for straightforward charging at any power outlet – also available with quick charge function for charging during a shift.

Optimum cornering

Sprung and cushioned support wheels linked via the ProTracLink torsion bar distribute stabilising forces dependent on travel conditions.
Evenly over all wheels during straight-line travel.
Concentrated on the outer support wheel when cornering.

Optimised pallet entry

Forks with fork tips tilted by 3° ensure smooth entry into closed pallets.
A large number of entry and exit aids makes pallet handling even easier. Moreover, all forks have a mark for receiving transverse pallets. This minimises pallet damage.

Lower maintenance costs

Maintenance-free 3-phase AC drive motor without carbon brushes.
Easy access to all components through one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through enclosure of controller and plugs in accordance with IP 54.
ProTracLink: Level equalisation ensures reduced support wheel wear when approaching ramps at an angle.
Wide-tread version (optional): Wide drive wheel and wide support wheels of the torsion bar ensure a safe ride, even on longitudinal joints (e.g. cold store trailers).

Ergonomic tiller head

A clear colour coding system and buttons with abrasion resistant symbols for intuitive operation.
Optimally adaptable grip position.
Crawl speed button on the underside of the tiller arm for quick access and easy operation with the tiller in the vertical position.
Non-contact sensor system with IP 65 protection, hence lowest risk of breakdown.
Rocker switch for consistently good operation in all tiller positions.

Additional equipment

2-inch- display with battery discharge indicator, hour metre, error codes as well as a choice of 3 driving programs.
Activation of truck with EasyAccess by softkey, PIN code or transponder card.
Buzzer instead of horn.
Load guard.
Wide-tread wheels and rollers.
Cold store version.
silentDRIVE.





Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJE 114	1,400 kg	122 mm	5 km/h	1,636 mm	24 V
EJE 116	1,600 kg	122 mm	6 km/h	1,636 mm	24 V
EJE 118	1,800 kg	122 mm	6 km/h	1,636 mm	24 V
EJE 120	2,000 kg	122 mm	6 km/h	1,636 mm	24 V
