Lithium-ion batteries
As a pioneer in li-ion technology we have been developing this technology intensively for almost ten years, to provide you with greater performance for your warehouse.
As the leading system supplier in intralogistics with our own in-house research and development as well as production facilities, we are able to provide batteries, charging units, vehicles and consulting services that are perfectly synchronised with each other.
Li-ion batteries offer several benefits:
- High performance for maximum throughput and efficiency in your warehouse.
- 24/7 at your disposal thanks to fast charging times and zero maintenance.
- Long battery life with constant power.
100 % satisfaction. Guaranteed.
We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.
No worries. No compromise.
With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.
Benefit from the advantages
Power & Performance

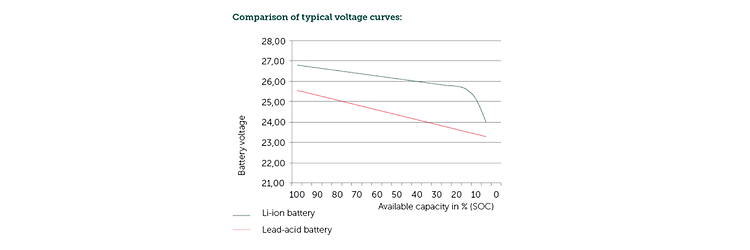

- Reliably high performance thanks to a more constant voltage curve than lead-acid batteries.
- The increased efficiency in comparison with conventional technologies significantly reduces energy costs and CO2 emissions.
- More efficient recuperation (energy retrieval when braking).
High truck availability

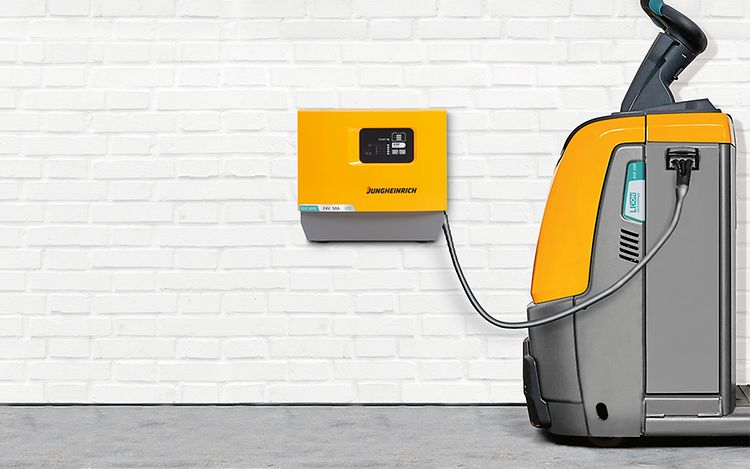

- Fast and opportunity charging during breaks and downtimes for a 24/7 availability of trucks and flexibility in your warehouse.
- Within 30 minutes of charging the 24 Volt battery absorbs 50 percent of its capacity. After 80 minutes it reaches its full charge status.

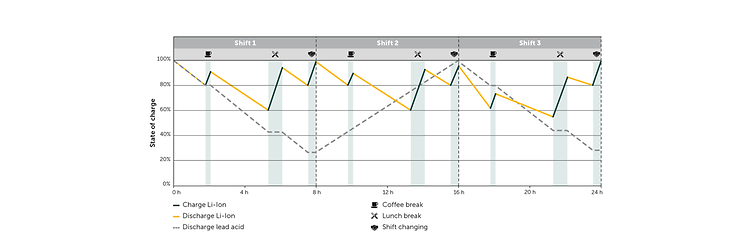

Typical charge and discharge history of li-ion batteries
Zero maintenance
Lithium-ion batteries are absoulutely maintenance free and do not emit gas. That largely eliminates the costs of battery upkeeping, maintenance and infrastructure.
- No water refilling.
- No risks and odours due to escaping gas or acidification.
- No need for special charging areas with ventilation.
- No expensive battery changing systems with their heavy drain on time and human resources.
Long service life
- Li-ion batteries last 3x longer than conventional technologies.
- Constant performance during the battery life cycle.

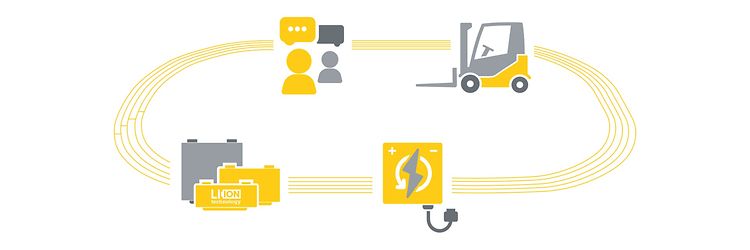

Jungheinrich offers you a complete, interconnected system in which the battery, charging unit and vehicle perfectly communicate with each other, thus significantly reducing power requirements.
This we can guarantee thanks to our in-house research and development as well as the production. All for one reason: to maximise efficiency, safety and comfort whilst minimising consumption and costs.
For the simple and efficient changeover of your fleet to lithium-ion batteries and charging technology, one of our energy consultants will complete an integrated energy consultation on your premises.
Almost our entire fleet is now li-ion ready.
Electric pedestrian trucks
Truck model | Battery type 24 V |
| EJE 112i/EJE 114i | 40 Ah |
EJE | 110/240/360 Ah |
ERE | 240/360 Ah |
ESE | 240/360 Ah |
Electric stacker trucks
Truck model | Battery type 24 V |
EJC | 110/240/360 Ah |
ESC | 240/360 Ah |
EMD 115i | 40 Ah |
EMD | 110 Ah |
EJD | 110/240/360 Ah |
ERD | 240/360 Ah |
ESD | 240/360 Ah |
Horizontal order pickers
Truck model | Battery type 24 V |
ECE | 240/360 Ah |
Tow tractors
Truck model | Battery type 24 V |
EZS | 240/360 Ah |
Truck modelBattery type | 48 V |
EZS | 360/480 Ah |
Reach trucks
Truck model | Battery type 48 V |
ETV | 360/480 Ah |
Counterbalance trucks
Truck model | Battery type 48 V |
EFG | 360/480 Ah |
Fahrzeug-Modell | Batterie-Typ 80 V |
EFG | 500 Ah |

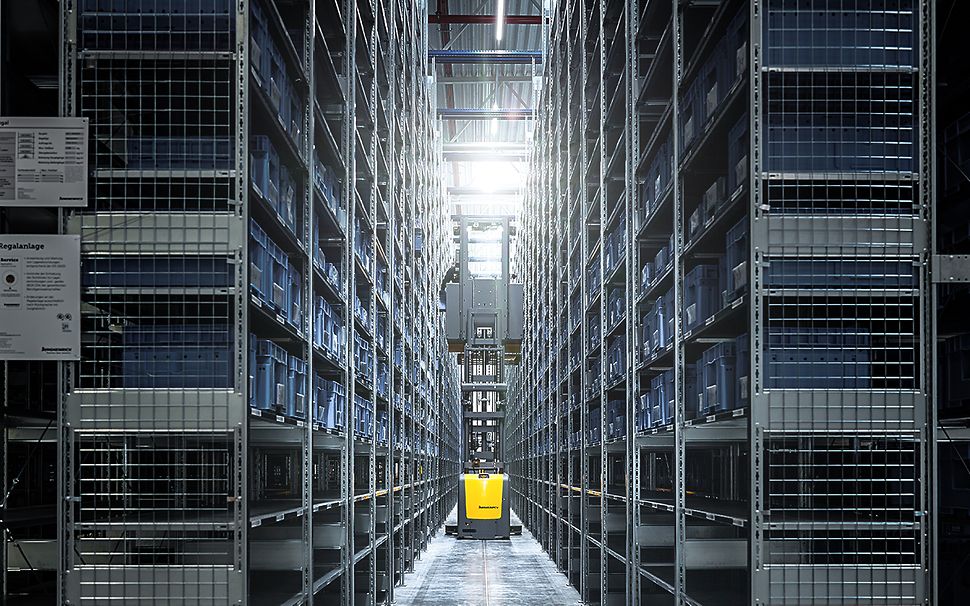

Vertical order pickers
Truck model | Battery type 80 V |
EKS | 360/480 Ah |
Battery data sheet
