Electric pedestrian pallet truck 1.4 - 1.8t

122 mm
1400 - 1800 kg

24/7 availability due to built-in lithium-ion batteries
Maximum manoeuvrability thanks to its very small front end compartment
A lightweight in its class
Ideal for use on HGV
Built-in charger for quick charges at any standard 230-V electricity outlet

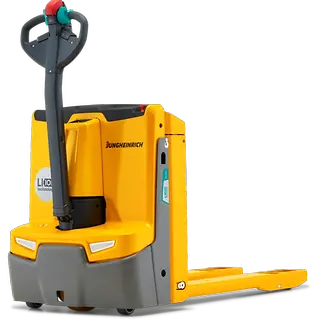

EJE 114i -118i

The particularly efficient and manoeuvrable EJE 114i - 118i electric pedestrian pallet trucks with their integrated lithium-ion batteries offer the perfect combination of economic efficiency and robustness along with the flexibility of our highly efficient battery technology. The integrated lithium-ion battery allows for an even more compact design leading to even greater manoeuvrability and lower weight. This makes them ideal for conventional applications on HGVs or in any other weight-sensitive and confined space. In conjunction with the built-in charger for easy charging at any standard 230-V electricity outlet, lithium-ion technology offers a number of advantages: very long, maintenance-free battery life cycle as well as rapid and booster charging during breaks or downtime. This allows for 24/7 truck availability and flexible use in multi-shift operations.

Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.

Learn more

Features

Integrated li-ion technology

Built-in charger for fast charging at any 230-V electricity outlet, even during short breaks.
No battery exchange or maintenance required.
High degree of availability thanks to extremely short charging times.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build up of gas.

Safe handling and maintenance

Maintenance-free 3-phase AC drive motor without carbon brushes.
Easy access to all components through one-piece front cover secured by only two screws.
Excellent protection against dust and humidity through IP 54 enclosure of controller and plugs.
ProTracLink: Reduced support wheel wear when approaching ramps at an angle thanks to level equalisation. A mechanical link keeps both support wheels at the same height, ensuring no impact from the lower support wheel and therefore reducing damage.
Increased safety due to lithium-ion batteries that do not release any gases.

Crawl speed button

Increased safety due to automatically reduced speed when manoeuvring with vertical tiller in confined spaces.

Work ergonomically

Tiller arm optimally adapted to the ergonomic needs of the operator.
Clear colour coding and buttons with wear-resistant icons ensure intuitive operation.
Grip position optimally adapted to the operator's hand posture.
Easy accessibility of the crawl speed button when travelling with vertical tiller.
Contactless sensor system with IP 65 protection rating guarantees high protection from breakdown.
Rocker switch for consistent operation in all tiller positions.

Small, compact truck

Extremely short front end length (l2 measurement) of only 416 mm, due to reduced battery compartment.
Easy manoeuvring in very confined spaces.
Overall weight including battery only 280 kg.



EJE-1i_Detail_--_Batterieentnahme_[MAM-55603] (1).webp

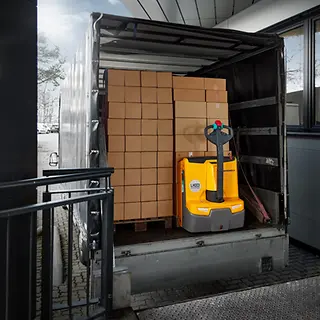

EJE1-1i_Operation_--_LKW-Beladung_[MAM-55597] (4).webp

EJE-1i_Operation_--_Laden_an_Steckdose_[MAM-55588] (1).webp

Model Overview

Model	Load capacity	Lift height	Travel speed	Overall length	Battery voltage
EJE 114i	1,400 kg	122 mm	5 km/h	1,566 mm	25.7 V
EJE 116i	1,600 kg	122 mm	6 km/h	1,566 mm	25.7 V
EJE 118i	1,800 kg	122 mm	6 km/h	1,566 mm	25.7 V

Downloads

EJE-1-LI_Factsheet_EN-AU_2024-11.pdf pdf (1.3 MB)

Technical data EJE 1i (2021) pdf (1.5 MB)

Product advantages EJE 1i pdf (3.0 MB)

EJE 114i -118i
